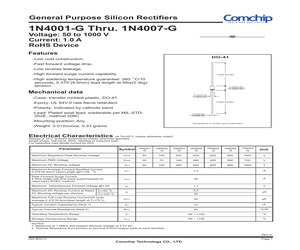

1N4001-G Thru. 1N4007-G Voltage: 50 to 1000 V Current: 1.0 A RoHS Device DO-41 Features - Low cost construction. - Fast forward voltage drop. - Low reverse leakage. - High forward surge current capability. 1.000(25.40) Min. - High soldering temperature guarantee: 260 OC/10 seconds, 0.375"(9.5mm) lead length at 5lbs(2.3kg) tension. 0.205(5.21) 0.161(4.10) Mechanical data 0.117(2.97) DIA. 0.078(2.00) DIA. - Case: Transfer molded plastic, DO-41 - Epoxy: UL 94V-0 rate flame retardant 1.000(25.40) Min. - Polarity: Indicated by cathode band - Lead: Plated axial lead, solderable per MIL-STD-750, method 2026 0.035(0.90) DIA. 0.027(0.70) DIA. - Mounting position: Any - Weight: 0.012ounce, 0.34 grams(approx.). Dimensions in inches and (millimeter) Electrical Characteristics (at TA=25C unless otherwise noted) Ratings at 25C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load derate current by 20%. Symbol 1N4001 -G 1N4002 -G 1N4003 -

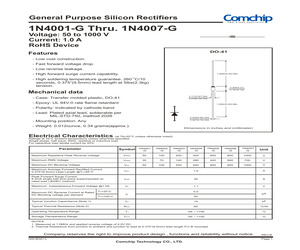

1N4001-G Thru. 1N4007-G Voltage: 50 to 1000 V Current: 1.0 A RoHS Device Features DO-41 -Low cost construction. -Fast forward voltage drop. -Low reverse leakage. -High forward surge current capability. 1.0(25.40) Min. O -High soldering temperature guarantee: 260 C/10 seconds, 0.375"(9.5mm) lead length at 5lbs(2.3kg) tension. 0.205(5.20) 0.160(4.20) Mechanical data 0.107(2.70) 0.080(2.00) -Case: transfer molded plastic, DO-41 1.0(25.40) Min. -Epoxy: UL 94V-0 rate flame retardant -Polarity: Indicated by cathode band -Lead: Plated axial lead, solderable per MIL-STD202E, method 208C 0.034(0.90) 0.028(0.70) -Mounting position: Any Dimensions in inches and (millimeter) -Weight: 0.012ounce, 0.33 grams Electrical Characteristics (at TA=25C unless otherwise noted) Ratings at 25C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load derate current by 20%. Symbol 1N4001 -G 1N4002 -G 1N4003 -G 1N 4004 -G 1N4005 -G 1N4006 -G 1N4007 -G U

1N4001-G Thru. 1N4007-G Voltage: 50 to 1000 V Current: 1.0 A RoHS Device Features DO-41 -Low cost construction. -Fast forward voltage drop. -Low reverse leakage. -High forward surge current capability. 1.0(25.40) Min. O -High soldering temperature guarantee: 260 C/10 seconds, 0.375"(9.5mm) lead length at 5lbs(2.3kg) tension. 0.205(5.20) 0.160(4.20) Mechanical data 0.107(2.70) 0.080(2.00) -Case: transfer molded plastic, DO-41 1.0(25.40) Min. -Epoxy: UL 94V-0 rate flame retardant -Polarity: Indicated by cathode band -Lead: Plated axial lead, solderable per MIL-STD202E, method 208C 0.034(0.90) 0.028(0.70) -Mounting position: Any Dimensions in inches and (millimeter) -Weight: 0.012ounce, 0.33 grams Electrical Characteristics (at TA=25C unless otherwise noted) Ratings at 25C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load derate current by 20%. Symbol 1N4001 -G 1N4002 -G 1N4003 -G 1N 4004 -G 1N4005 -G 1N4006 -G 1N4007 -G U

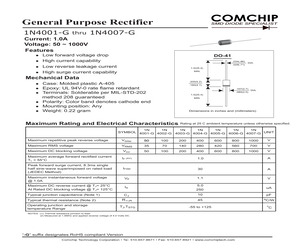

1N4001-G thru 1N4007-G Current: 1.0A Voltage: 50 ~ 1000V Features Low forward voltage drop High current capability Low reverse leakage current High surge current capability DO-41 .034(.86) DIA. .028(.71) 1.0(25.4) MIN. Mechanical Data .205(5.2) Case: Molded plastic A-405 Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 guaranteed Polarity: Color band denotes cathode end Mounting position: Any Weight: 0.22 gram .160(4.1) .107(2.7) DIA. .080(2.0) 1.0(25.4) MIN. Dimensions in inches and (millimeters) Maximum Rating and Electrical Characteristics Rating at 25 C ambient temperature unless otherwise specified. 1N 1N 1N 1N 1N 1N 1N SYMBOL 4001-G 4002-G 4003-G 4004-G 4005-G 4006-G 4007-G UNIT Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current TL = 55C IF (AV) 1.0 A Peak forward surge curren

1N4001-G thru 1N4007-G Current: 1.0A Voltage: 50 ~ 1000V Features Low forward voltage drop High current capability Low reverse leakage current High surge current capability DO-41 .034(.86) DIA. .028(.71) 1.0(25.4) MIN. Mechanical Data .205(5.2) Case: Molded plastic A-405 Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 guaranteed Polarity: Color band denotes cathode end Mounting position: Any Weight: 0.22 gram .160(4.1) .107(2.7) DIA. .080(2.0) 1.0(25.4) MIN. Dimensions in inches and (millimeters) Maximum Rating and Electrical Characteristics Rating at 25 C ambient temperature unless otherwise specified. 1N 1N 1N 1N 1N 1N 1N SYMBOL 4001-G 4002-G 4003-G 4004-G 4005-G 4006-G 4007-G UNIT Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current TL = 55C IF (AV) 1.0 A Peak forward surge curren

1N4001-G Thru. 1N4007-G Voltage: 50 to 1000 V Current: 1.0 A RoHS Device Features DO-41 -Low cost construction. -Fast forward voltage drop. -Low reverse leakage. -High forward surge current capability. 1.0(25.40) Min. O -High soldering temperature guarantee: 260 C/10 seconds, 0.375"(9.5mm) lead length at 5lbs(2.3kg) tension. 0.205(5.20) 0.160(4.20) Mechanical data 0.107(2.70) 0.080(2.00) -Case: transfer molded plastic, DO-41 1.0(25.40) Min. -Epoxy: UL 94V-0 rate flame retardant -Polarity: Indicated by cathode band -Lead: Plated axial lead, solderable per MIL-STD202E, method 208C 0.034(0.90) 0.028(0.70) -Mounting position: Any Dimensions in inches and (millimeter) -Weight: 0.012ounce, 0.33 grams O Electrical Characteristics (at TA=25 C unless otherwise noted) O Ratings at 25 C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load derate current by 20%. Symbol 1N4001 -G 1N4002 -G 1N4003 -G 1N 4004 -G 1N4005 -G 1N4006 -G 1N400
